Flowmax® 54i


Flowmax® 54i is a flowmeter designed for precise determination of liquid flow rates. Based on ultrasonic technology, it measures both conductive and non-conductive media without any contact.
The device operates without moving parts, making it maintenance-free. The flow tube has a low-dead-space design, and all wetted parts are made of PE-HD.
Other materials on request.
This makes Flowmax® 54i suitable for applications ranging from DI water to aggressive, toxic, or alkaline liquids.
It offers high measurement accuracy, repeatability, and an integrated empty-pipe detection feature. A PID control function is optionally available. Measured values are output with a response time of just a few milliseconds.
A preset batch counter is included as standard, complete with a control signal for pump or valve actuation. The start signal can optionally be supplied externally. Flowmax® 54i is particularly well-suited for use with piston diaphragm and peristaltic pumps.

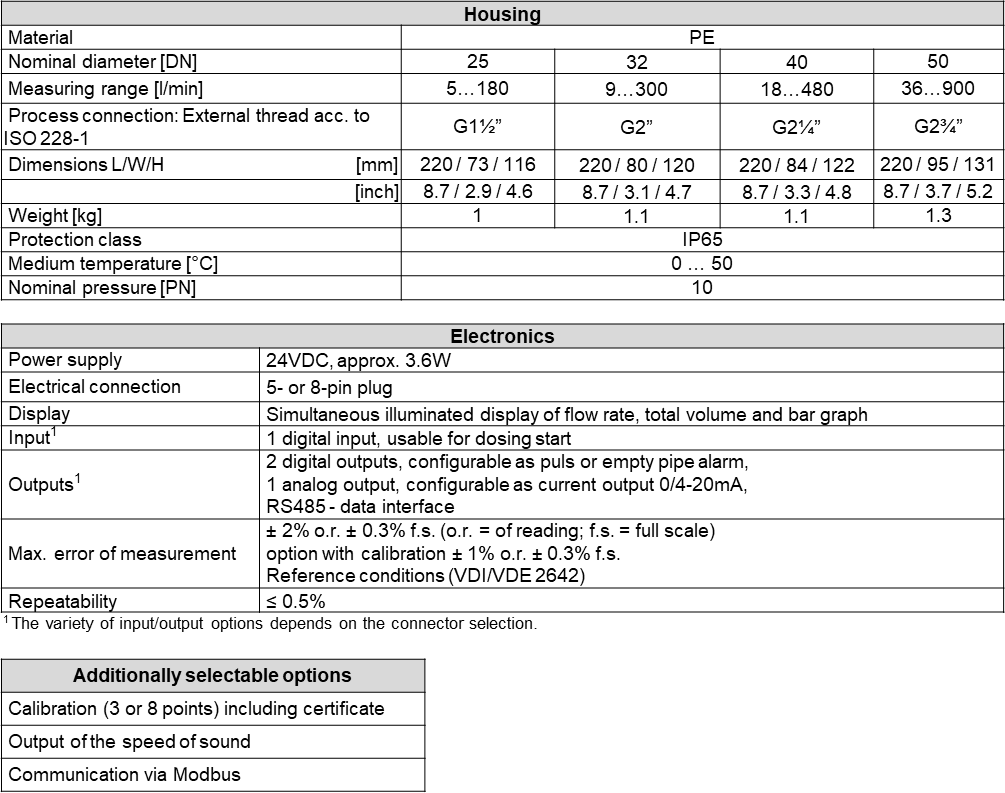

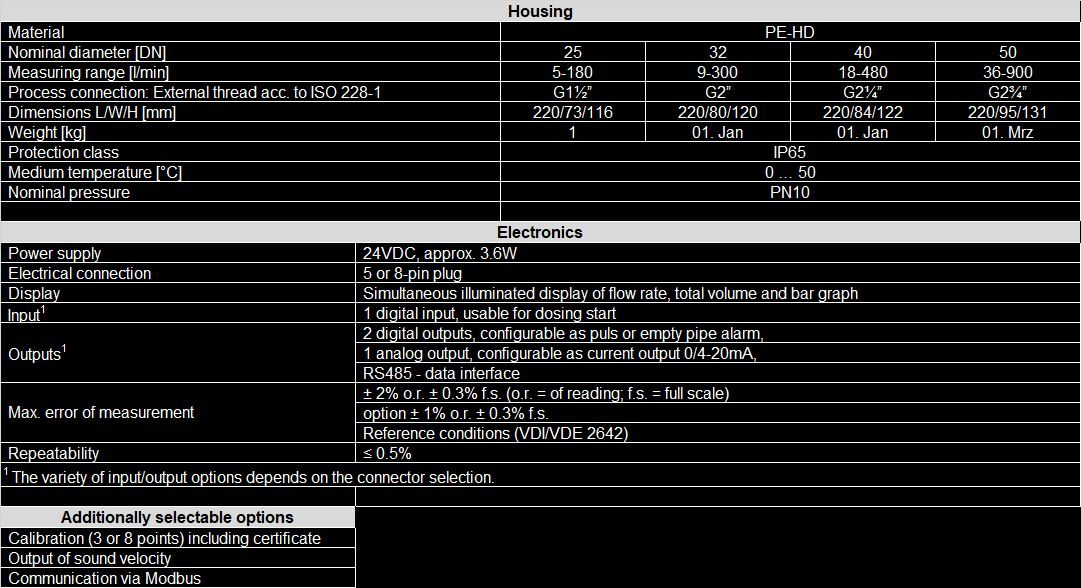

Tabelle_FM54i_E_10.25
