Flowmax® 400i EX

Flowmax® 400i     is a contactless ultrasonic flowmeter for conductive and non-conductive liquids. Its slipstream-free channel geometry and lack of moving parts make it wear-free and hygienic. All media-contacting components are made of PFA.

Flowmax® is suitable from DI water to alkaline, toxic and aggressive media as well as solvents, including in explosion-hazardous areas. The device stands out for high measurement accuracy, reproducibility, and integrated empty-volume monitoring.

The measured volumetric flow rate is available at the outlets with milliseconds response time. By default Flowmax® has a preset quantity counter; an external start signal is optional. A control signal for activating pumps or valve control is also available.

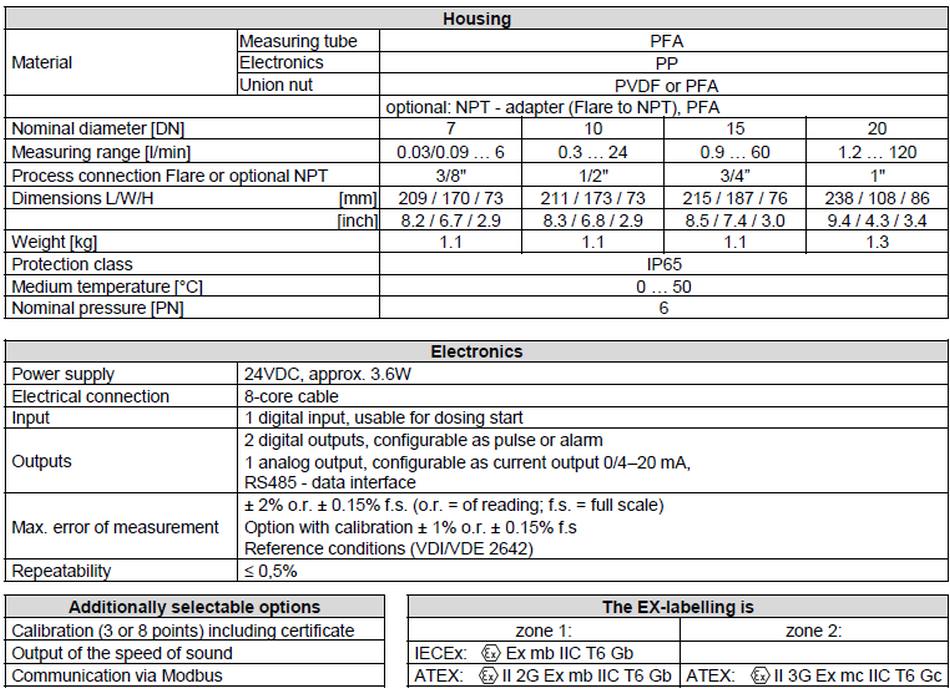

Tabelle_FM400i_E_EX_10.25

Download area Flowmax® 400i EX
